LLM output explainer skill

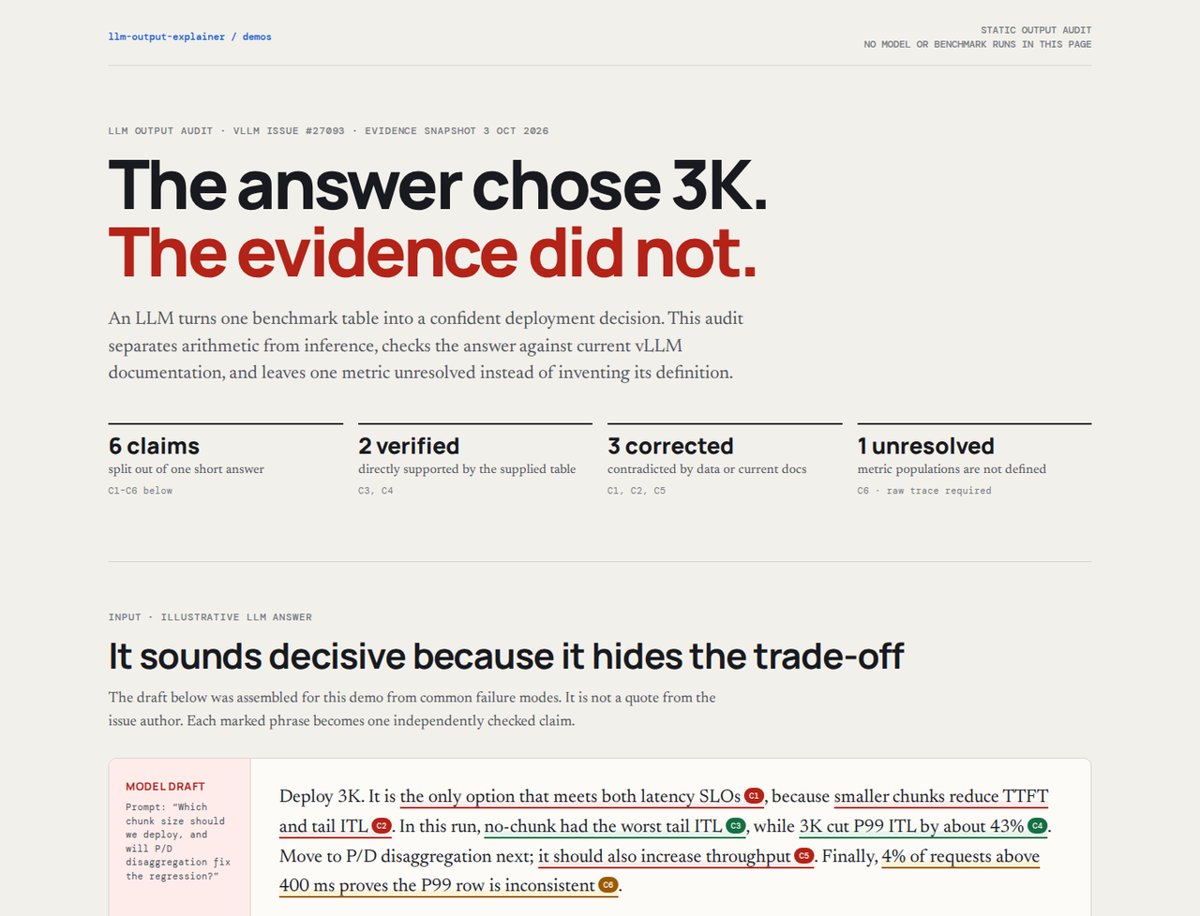

LLM output explainer — explain — Demo/output image published by the author (repo README): Static audit of an LLM answer about vLLM chunked prefill, showing six checked claims and their verdicts

Illustration · not a resultFrom the JohnQinAMD/llm-output-explainer README — shows the whole collection, not only this skill.source ↗

Explain something in the format that is fastest to understand, from controlled English (ASD-STE100 style), to a diagram, to an interactive HTML page, to a narrated explainer video.

by JohnQinAMD·MIT license·★ 4 Stars on the repo·GitHub ↗

Use now

Files of LLM output explainer

JohnQinAMD/main1 file shown
SKILL.md
Show the full text100 lines

LLM output explainer

Make a subject easy to understand, and make sure every statement in the explanation is true.

1. Choose the format

Format Use when Output
Controlled English (80% ASD-STE100) answers, summaries, procedures; the default in chat the reply
Diagram the point is a structure: data flow, before/after, states a one-figure page
Interactive HTML page several parts, numbers, a mechanism worth playing with; something to share a private Artifact when available, otherwise a standalone .html file
Video only when asked: intuition that unfolds over time an .mp4

If the user names a format, use it. In chat, answer in controlled English. When a richer format would clearly help, offer it in one line.

2. Parallelize the evidence work

Decide the split before deep reading; do not ask the user to opt in. When subagent tools are available, use two read-only subagents if any condition applies:

  • the answer needs two or more independent primary sources;
  • the expected ledger has at least five factual or quantitative claims;
  • a code change spans at least three files or commits;
  • the deliverable is a diagram, HTML page, or video.

Use one for a smaller independent check. Use none for one short source, an ordered chain, or work under about one minute. Keep synthesis and the ledger in the root. Section 5 hands a page, diagram, or video to one background builder.

Subject Useful parallel split
Code or PR current runtime path; changed commits and live PR state
Paper or algorithm mechanism and proof; measurements and conditions
Benchmark or incident reported numbers; alternative causes and missing evidence
Agent output claims and sources; contradiction and scope check
  • Root keeps the prompt and main decision-changing source. Give every other source, file range, or hypothesis one owner. For benchmark plus code, assign runtime code to one agent and numbers plus counter-evidence to the other.
  • Give each agent one bounded question. Request at most 10 rows and 5 risks as claim | source | status | scope; no narrative or file edits.
  • Root works while agents run. Evidence agents do not spawn descendants, edit, commit, or push. Root owns the ledger, the brief, and delivery. The builder owns only its output files and their checks.
  • Share snapshots already fetched. Do not reread another owner's source without a concrete contradiction.
  • Reconcile conflicts. Stop when every material and quantitative claim has adequate evidence.
  • If subagent tools are unavailable, use the same evidence split with batched tool calls. Never imply that subagents ran.

3. Check facts before writing

A clear explanation of a wrong fact misleads more than a vague one.

  • Read primary sources: the code that runs (dispatch, launch sites, constants), the logs, the paper. Comments, old PR bodies and memory describe some earlier state.
  • Check live state first. For a PR, run scripts/pr_facts.sh <owner/repo> <N> [checkout] [body-file], which reads the PR from the GitHub API. A PR can merge after your notes were written.
  • Keep a claim ledger: one line per fact, with its source (file:line, commit, URL) and a status. The statuses are verified, corrected, unsupported, and unverifiable. "Corrected" also covers a claim made more precise. A fact computed from sourced inputs counts as verified. Cut unsupported claims. Label unverifiable ones on the page. If a page or video may follow, write the ledger to a file as you go.
  • Figures are claims too. Every arrow, label and on-screen number needs a source.
  • Numbers keep their conditions: hardware, settings, the version measured, and what it was compared against.
  • Simulated data gets labeled. When you simulate, run the real algorithm on made-up inputs.
  • For code changes:
    • Trace the baseline as it runs today on the base branch.
    • Trust launch and dispatch code over comments.
    • Read every commit's diff; "Rebase onto main" commits can change behavior.
    • For a merged PR, describe the code as merged. If main changed it later, add a one-line "after the merge" note.
    • In a blobless clone, read old commits with git -c gc.auto=0 ..., so reading doesn't start a background gc.
Fast path
  • Read the smallest decisive source region. Batch independent searches, reads, and live checks; do not fetch evidence twice. If a web fetch times out, use curl.
  • For a PR, run pr_facts.sh once and share its snapshot.
  • Verify decision-changing claims and numbers first. Draft while secondary checks finish.
  • Load only the selected format reference. Run cheap validators on the frozen draft once (the builder does this for pages); rerun only after relevant fixes.
  • Return when the evidence threshold is met. Put optional analysis after the usable result.

4. Know the reader

Reader Start with Density Leave out
The user the answer high what they already told you
A peer (reviewer) what changes and why, in two sentences high, every claim cited the work history; noise the user's rules exclude
An outsider (manager, other team) the outcome and its number low, 3 to 5 points internals

A new reader needs a new outline; changing the wording is not enough. To meet a common wrong idea, take it from a source (a review comment, a corrected ledger line). Otherwise say it is a guess. For other readers, check memory for the user's rules about that audience, and apply them. Where they conflict with this skill, the user's rules win: for example, cut an unverifiable claim from reviewer text instead of labeling it.

5. Produce

  • Controlled English: write it in chat. references/ste-writing.md has the Issue 9 rules, and scripts/ste_lint.py [--strict] file flags breaks.
  • Diagram, page, or video: do not build it in the root, and do not ask. Write <work dir>/<name>.brief.md with the fields in references/build.md, including the full ledger and copies of the fetched sources. The builder sees only the brief, so its outline must be the whole page you would build yourself: every section, what each figure and interaction shows, and each caveat and label. A thin brief gives a thin page. Start a general-purpose subagent in the background on your own model (in Claude Code, the Agent tool with run_in_background: true; do not pick a smaller model, because it explains less) with the prompt "Read <skill dir>/references/build.md and follow it for the brief at <brief path>." Tell the user in one line, keep working, and relay its report as in section 6. For a video, get the plan from references/video.md step 2 approved in chat first. Without background subagents, follow build.md yourself.

6. Deliver

Before sending, check four things:

  • the first screen answers the question;
  • every term the reader may not know is defined before its first use;
  • a concrete example comes early, right after the one-line answer;
  • every number has its condition.

Then:

  • If the reader is someone else, start with one line: "Written for: …".
  • Give the link or file, and a short list of what it shows.
  • Name any claim you corrected while checking, especially one from the user's own notes.
  • If you publish an Artifact, say that it is private until the user shares it. If you create a standalone file, give its path.
  • Update memory when you learned something durable, such as a PR merging or a baseline fact that was wrong.
1---
2name: explain
3description: Explain something in the format that is fastest to understand, from controlled English (ASD-STE100 style), to a diagram, to an interactive HTML page, to a narrated explainer video. Check facts against their sources, using parallel subagents for independent evidence streams when the host supports them. Use when the user wants to understand a substantial concept, algorithm, code change, pull request, paper, benchmark result, or agent output, or asks for an explainer, diagram, HTML explanation, STE, or video. Not for one-line answers, drafting a pull request description, or code review.
4---
5
6# LLM output explainer
7
8Make a subject easy to understand, and make sure every statement in the explanation is true.
9
10## 1. Choose the format
11
12| Format | Use when | Output |
13|---|---|---|
14| **Controlled English** (80% ASD-STE100) | answers, summaries, procedures; the default in chat | the reply |
15| **Diagram** | the point is a structure: data flow, before/after, states | a one-figure page |
16| **Interactive HTML page** | several parts, numbers, a mechanism worth playing with; something to share | a private Artifact when available, otherwise a standalone .html file |
17| **Video** | only when asked: intuition that unfolds over time | an .mp4 |
18
19If the user names a format, use it. In chat, answer in controlled English. When a richer format would clearly help, offer it in one line.
20
21## 2. Parallelize the evidence work
22
23Decide the split before deep reading; do not ask the user to opt in. When subagent tools are available, use two read-only subagents if any condition applies:
24
25- the answer needs two or more independent primary sources;
26- the expected ledger has at least five factual or quantitative claims;
27- a code change spans at least three files or commits;
28- the deliverable is a diagram, HTML page, or video.
29
30Use one for a smaller independent check. Use none for one short source, an ordered chain, or work under about one minute. Keep synthesis and the ledger in the root. Section 5 hands a page, diagram, or video to one background builder.
31
32| Subject | Useful parallel split |
33|---|---|
34| Code or PR | current runtime path; changed commits and live PR state |
35| Paper or algorithm | mechanism and proof; measurements and conditions |
36| Benchmark or incident | reported numbers; alternative causes and missing evidence |
37| Agent output | claims and sources; contradiction and scope check |
38
39- Root keeps the prompt and main decision-changing source. Give every other source, file range, or hypothesis one owner. For benchmark plus code, assign runtime code to one agent and numbers plus counter-evidence to the other.
40- Give each agent one bounded question. Request at most 10 rows and 5 risks as `claim | source | status | scope`; no narrative or file edits.
41- Root works while agents run. Evidence agents do not spawn descendants, edit, commit, or push. Root owns the ledger, the brief, and delivery. The builder owns only its output files and their checks.
42- Share snapshots already fetched. Do not reread another owner's source without a concrete contradiction.
43- Reconcile conflicts. Stop when every material and quantitative claim has adequate evidence.
44- If subagent tools are unavailable, use the same evidence split with batched tool calls. Never imply that subagents ran.
45
46## 3. Check facts before writing
47
48A clear explanation of a wrong fact misleads more than a vague one.
49
50- **Read primary sources:** the code that runs (dispatch, launch sites, constants), the logs, the paper. Comments, old PR bodies and memory describe some earlier state.
51- **Check live state first.** For a PR, run `scripts/pr_facts.sh <owner/repo> <N> [checkout] [body-file]`, which reads the PR from the GitHub API. A PR can merge after your notes were written.
52- **Keep a claim ledger:** one line per fact, with its source (`file:line`, commit, URL) and a status. The statuses are verified, corrected, unsupported, and unverifiable. "Corrected" also covers a claim made more precise. A fact computed from sourced inputs counts as verified. Cut unsupported claims. Label unverifiable ones on the page. If a page or video may follow, write the ledger to a file as you go.
53- **Figures are claims too.** Every arrow, label and on-screen number needs a source.
54- **Numbers keep their conditions:** hardware, settings, the version measured, and what it was compared against.
55- **Simulated data gets labeled.** When you simulate, run the real algorithm on made-up inputs.
56- **For code changes:**
57 - Trace the baseline as it runs today on the base branch.
58 - Trust launch and dispatch code over comments.
59 - Read every commit's diff; "Rebase onto main" commits can change behavior.
60 - For a merged PR, describe the code as merged. If main changed it later, add a one-line "after the merge" note.
61 - In a blobless clone, read old commits with `git -c gc.auto=0 ...`, so reading doesn't start a background gc.
62
63### Fast path
64
65- Read the smallest decisive source region. Batch independent searches, reads, and live checks; do not fetch evidence twice. If a web fetch times out, use `curl`.
66- For a PR, run `pr_facts.sh` once and share its snapshot.
67- Verify decision-changing claims and numbers first. Draft while secondary checks finish.
68- Load only the selected format reference. Run cheap validators on the frozen draft once (the builder does this for pages); rerun only after relevant fixes.
69- Return when the evidence threshold is met. Put optional analysis after the usable result.
70
71## 4. Know the reader
72
73| Reader | Start with | Density | Leave out |
74|---|---|---|---|
75| The user | the answer | high | what they already told you |
76| A peer (reviewer) | what changes and why, in two sentences | high, every claim cited | the work history; noise the user's rules exclude |
77| An outsider (manager, other team) | the outcome and its number | low, 3 to 5 points | internals |
78
79A new reader needs a new outline; changing the wording is not enough. To meet a common wrong idea, take it from a source (a review comment, a corrected ledger line). Otherwise say it is a guess. For other readers, check memory for the user's rules about that audience, and apply them. Where they conflict with this skill, the user's rules win: for example, cut an unverifiable claim from reviewer text instead of labeling it.
80
81## 5. Produce
82
83- **Controlled English:** write it in chat. `references/ste-writing.md` has the Issue 9 rules, and `scripts/ste_lint.py [--strict] file` flags breaks.
84- **Diagram, page, or video:** do not build it in the root, and do not ask. Write `<work dir>/<name>.brief.md` with the fields in `references/build.md`, including the full ledger and copies of the fetched sources. The builder sees only the brief, so its outline must be the whole page you would build yourself: every section, what each figure and interaction shows, and each caveat and label. A thin brief gives a thin page. Start a general-purpose subagent in the background on your own model (in Claude Code, the Agent tool with `run_in_background: true`; do not pick a smaller model, because it explains less) with the prompt "Read `<skill dir>/references/build.md` and follow it for the brief at `<brief path>`." Tell the user in one line, keep working, and relay its report as in section 6. For a video, get the plan from `references/video.md` step 2 approved in chat first. Without background subagents, follow `build.md` yourself.
85
86## 6. Deliver
87
88Before sending, check four things:
89- the first screen answers the question;
90- every term the reader may not know is defined before its first use;
91- a concrete example comes early, right after the one-line answer;
92- every number has its condition.
93
94Then:
95- If the reader is someone else, start with one line: "Written for: …".
96- Give the link or file, and a short list of what it shows.
97- Name any claim you corrected while checking, especially one from the user's own notes.
98- If you publish an Artifact, say that it is private until the user shares it. If you create a standalone file, give its path.
99- Update memory when you learned something durable, such as a PR merging or a baseline fact that was wrong.
100
