Crayon storybook skill

Crayon storybook

A drawing engine for ReelMimic. Every frame is a pure function of time t: studio.html loads p5.js + p5.brush, the crayon look library, the cast and your scene files; each shot draws the whole 1920×1080 frame; render.mjs renders contact sheets, strips and crops for review, or all frames in parallel, and ffmpeg encodes the MP4.

Provenance. The runtime (template/src/core.js, timeline.js, render.mjs, studio.html, the render contract and helpers: paint, inkLine, camera, shots, glow, jump/take/spring, boilSeed…) derives from the painted-animation skill (ClaudeAnimationBase, MIT © John Heibel / tuzhechen2005 — see template/LICENSE). The look (crayon.js), the characters (cast.js), the page turn, the page finish and the captions are this engine's own.

Workflow

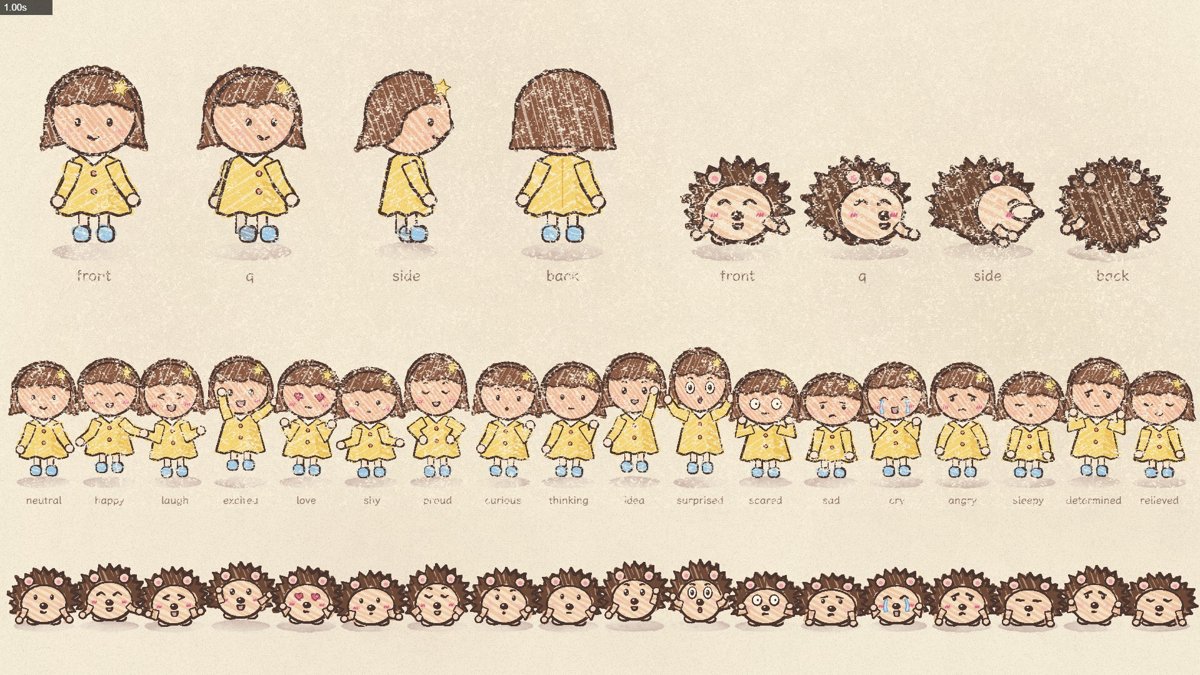

1. Scaffold — bash .claude/skills/crayon-storybook/scripts/new_project.sh <project-dir> (add --keep-demo to keep the example). It copies the template, runs npm install (which also writes the patched p5.brush build, see gotchas) and checks node / ffmpeg / Chrome. Then read GUIDE.md in full and look at docs/demo-sheet.jpg and docs/cast.jpg with Read.
2. Storyboard in writing: shots, reads (what the viewer must understand, when), transitions, captions.
3. Build — src/config.js (duration, bpm, fps: 24); one IIFE file per shot/scene in src/scenes/, ending with shots([...]); add its <script> to studio.html. Captions: captions([[t0, t1, '文字', { pos }]]) once.
4. Look, fix, look again (from the project dir):

   node render.mjs --sheet=0.5,1.5,2.5,3.5 --cols=4 --w=480 --out=out/check/a.jpg
   node render.mjs --strip=2.0:2.6 --cols=6 --w=320 --out=out/check/strip.jpg
   node render.mjs --sheet=2.3 --cols=1 --crop=600,200,900,700 --w=900 --out=out/check/face.jpg


   Open every image with Read. At least a sheet per shot, a strip per key action and per transition, a crop per face.
5. Render — node render.mjs --frames --workers=4 && node render.mjs --encode --out=out/video.mp4 [--audio=…].

API in one screen

area	calls
fills	`colorIn(pts, { col, fill: 'scribble'
lines	crayonLine, pencilLine, pastelLine, sketchLine, inkLine(pts, sw, col, brush) — brushes crayon, crayonFine, cpen, pastel, chalk, graphite
shapes	ellPts, rectPts, rrPts, starPts, heartPts, through, ribbon (core)
scenery	sky, sun, cloud, hill/hillY, ground, tufts, tree, flower, house, paperWash
props	apple, leafProp, starProp, heartProp, balloon; emotes emote(kind, x, y, s, k, age)
cast	lulu(x, y, u, o), kuri(x, y, u, o) → { head, top, handL, handR, feet }; feel, emotions, walkCycle, pose
motion	seg, kf, ease*, backOut, spring, ring, jump, take, stroll, arcPt, onTwos, pulse, shakeXY
camera	camBegin(cx, cy, zoom, rot) … camEnd(), toScreen
staging	shots([[t0, fn], [t1, fn, { turn: 1.0 }]]) (page turn), bookPage(k), vignette(k), tooth(k), crayonWipe(p), iris, flash, glow
text	captions(list) (storybook captions via window.overlayHook), letter() for words inside the picture

Rules that matter most

1. Crayon medium only. Colour shapes in with colorIn (pale base + crayon scribble/hatch + coloured-pencil outline); lines with the crayon/pencil brushes. No plain p5 rect/ellipse/fill, no gradients, no 3D. Turns go through the drawn key views (front, q, side, back).
2. Pure functions of t. No Math.random(), no state between frames. hash() / rnd(key) for stable randomness; jit() only for boil. Call boilSeed(key) before each separate background element/prop.
3. Characters come from cast.js only. Scenes pass poses (aR, bR, view, walk, dy, sq, hair, holdR…) — they never draw a character's parts themselves. New characters go in cast.js (or one file each).
4. Big and legible. Lulu u ≈ 30–45 in medium shots (≈ 11u tall), Kuri u ≈ 26–36. Captions ≥ 64 px. Keep the caption band (bottom ~200 px, or pos: 'top') free of story-critical action.
5. Alive and acted. Moods change through emotions() (anticipation squint → take → settle); actions have anticipation → action → follow-through (jump, spring, hair); something happens in every shot.
6. A transition at every seam: page turn ({ turn }), crayon wipe, iris, fade from/to paper.

Engine gotchas

• Patched p5.brush. studio.html loads node_modules/p5.brush/dist/p5.brush.crayon.js, written by patch_brush.mjs on npm install. Stock p5.brush darkens pigment where overlapping stamps saturate (right for ink, wrong for wax): butter-yellow turned mustard. If that file is missing, run node patch_brush.mjs.
• Cost = number of colour changes + stroke area. Each colorIn is ~3 brush passes; p5.brush composites a mask per colour change. Keep big background shapes sparse (hill/ground already use wide gaps), don't scribble far off-screen. Typical: 150–250 ms/frame for a wide shot, ~350 ms for a busy medium shot with two characters and the page border, ~0.7–1 s during a page turn (two pages are drawn).
• Page turn: the previous shot keeps being called with lt > dur for turn seconds — let its motion settle.
• Don't name globals after p5's (line, text, color, scale, shape…): the page never gets ready.
• A NaN in a point list throws Failed to construct 'OffscreenCanvas'. ** after a unary minus is a syntax error.
• Strokes far from the origin under zoom ≳ 2 collapse (p5.brush); paint/inkLine/colorIn draw around each shape's centre, which avoids it for normal sizes.
• Google Fonts load over the network at page load; if a render times out on navigation, just re-run it.
• src/karaoke.js (from painted-animation) still works for lyric videos; add its <script> if needed.
